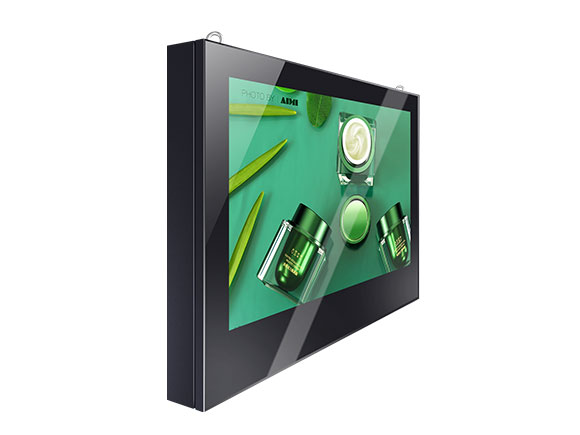

OUTDOOR WALL MOUTNED FULL GLASS-V130L

Description

  • The V130L series is LCD wall panels produced by Uniview. Through our innovation, the appearance of the LCD video wall display can be as thin as 13 cm, which is lighter than the previous models. The ultra-thin body makes it easy to transport, move and install. The hoisting ring design makes the LCD display screen easier to install and the suspension is firmer. According to the actual needs of customers, additional touch functions can be customized. By adding “outdoor touch”, it can be easily made into an interactive touch screen. Support remote and local monitoring through IP addressable user interface. V130L outdoor wall-mounted full glass panel, providing 2000-3000nits of light, has a good display effect, and is an excellent choice for outdoor public places.
  • Uniview LCD wall panel-V130L combines many of the most advanced electronic display technologies. While showing excellent display effects, it has made various improvements and innovations in terms of body material, safety performance, endurance performance, and convenience. Uniview’s LCD video wall display is worthy of your trust.

Features

  • IP55/IP65
  • Automatic brightness control
  • Automatic temperature control
  • Support front maintenance
  • Ultra thin thickness up to 13cm
  • Support landscape and portrait screen mode

Reference Dimension

  • 43:1140*800*130mm(L*W*D)
  • 55″:1450*1140*130mm(L*W*D)
S02 icon03

Anti-theft Lock

S02 icon06

Waterproof&Dustproof

S02 icon07

Direct Sunlight Readable

S02 icon08

24Hours/7Days Running

S02 icon10

Miracast

S02 icon12

Remote Monitoring

S02 icon15

Heat Dissipation

Specifications

OUTDOOR WALL MOUNTED DISPLAY
Panel
Panel size 32″/43″/49″/55″/65″/75″/86″/98″
Resolution 1080*1920/2160*3840
Aspect Ratio 16:09
Brightness(nits) 2000-3000nits
Contrast Ratio 1400:1
Gray to Gray Response Time(ms) 8
Viewing Angel 178°/178°
Backlight configuration WLED
Operating Life (hours) 50000-60000h
Media Connectivity
Operating System Interface Storage
Driver board HDMI, VGA, DVI None
Standalone HDMI, USB 16G
Android HDMI, USB 2G+16G/4G+16G
Windows HDMI, VGA, USB 4G+120G SSD
Touch
Touch Type Capacitive Touch
Number of Touch points 10/40
Interface USB
Power
Input Voltage AC110V/220V, 50/60HZ
Surge Protection Yes
Leakage Protection 30mA/0.1S
Enviroment
Operating  Enviroment Outdoor
Operating  Temperature -20°C~+40°C with fans , -30°C~+50° C with air conditioner
Storage  Temperature -20°C~+60°C
Humidity 10%-80% RH Non-condensing
Enclosure
Dust proof& Water proof IP55/IP65
Glass Type Laminated tempered and anti-reflective glass
Optional item
Touch Screen Yes
wifi access point Yes
