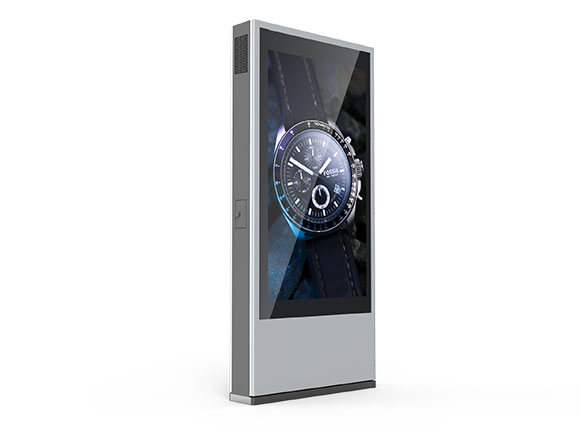

OUTDOOR DUAL SIDED FULL GLASS-L800P

Description

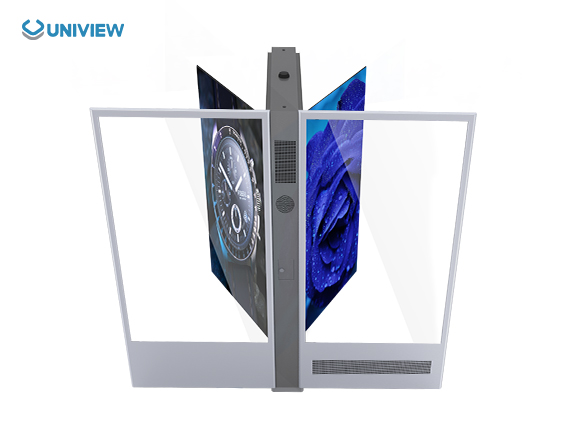

  • The Outdoor Dual Sided-Light Box, with two sides, one side with LCD display, another side with Light Box. Satisfy customer’s different need. Meanwhile with the Anti-theft lock design. Attractive enoughf, beauty choice on Bus staion, scenic spot and other public places.
  • Double Sided display back to back, LCD display+Light box. High-brightness makes sure the display will always be seen whatever the weahter. Over 7-10times brighter than that of a standard domestic television to improve the displays image clarity in an outdoor environment. Beauty choice of Bus station and other applications.

Features

  • IP55/IP65
  • Automatic brightness control
  • Automatic temperature control
  • Support open door maintenance
  • Double sided scree design option
  • One side screen and one side light box design option

Reference Dimension

  • 75″: 2250*1030*300mm(H*W*D)
S02 icon03

Anti-theft Lock

S02 icon06

Waterproof&Dustproof

S02 icon07

Direct Sunlight Readable

S02 icon08

24Hours/7Days Running

S02 icon10

Miracast

S02 icon12

Remote Monitoring

S02 icon15

Heat Dissipation

Specifications

Outdoor Dual Sided-Light Box       L800P
Panel
Panel size43″/49″/55″/65″/75″/86″/98″
Resolution1080*1920/2160*3840
Aspect Ratio16:09
Brightness(nit)2000-3000nit
Contrast Ratio1400:1
Gray to Gray Response Time(ms)8
Viewing Angel178°/178°
Backlight configurationWLED
Operating Life (hours)50000-60000h
Media Connectivity
Operating SystemInterfaceStorage
Driver boardHDMI, VGA, DVINone
StandaloneHDMI, USB16G
AndroidHDMI, USB2G+16G/4G+16G
WindowsHDMI, VGA, USB4G+120G SSD
Touch
Touch TypeCapacitive Touch
Number of Touch points10/40
InterfaceUSB
Power
Input VoltageAC110V/220V, 50/60HZ
Surge ProtectionYes
Leakage Protection30mA/0.1S
Enviroment
Operating  EnviromentOutdoor
Operating  Temperature-20°C~+40°C with fans , -30°C~+50° C with air conditioner
Storage  Temperature-20°C~+60°C
Humidity10%-80% RH Non-condensing
Enclosure
Dust proof& Water proofIP55/IP65
Glass TypeLaminated tempered and anti-reflective glass
Optional item
Touch ScreenYes
wifi access pointYes
CameraYes
Card ReaderYes
ScannerYes
