Two-Way Audience Coverage
Information can be viewed from two directions, helping content remain visible in busy indoor traffic areas.

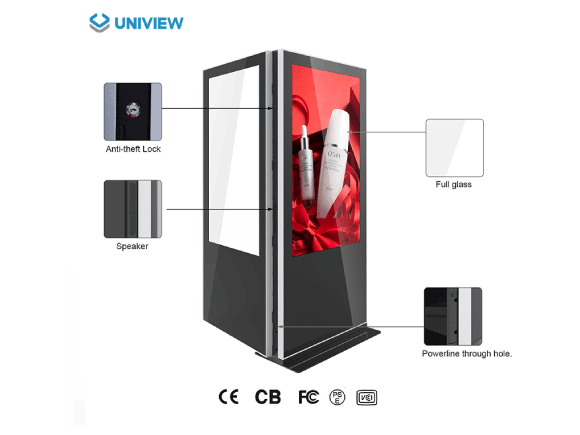

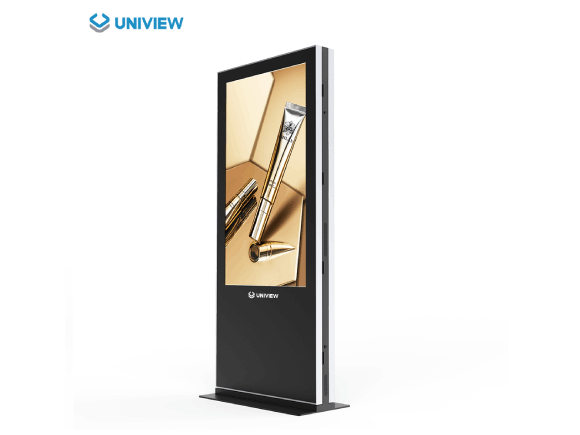

Double Sided Digital Display -DF2020
DF2020 is an indoor floor-standing LCD signage solution with screens on both sides of one cabinet. Each side can show the same or different content for commercial spaces where audiences approach from two directions. A dual-side opening structure supports practical inspection and maintenance access.
Dual-Screen Display
Same or Different Content
32″–75″ Screen Options
Easy-Access Maintenance
What Is a Double Sided Digital Display?
A double sided digital display places LCD screens on both sides of a single floor-standing enclosure. It gives one installation the ability to communicate with visitors moving in opposite directions, making it a useful two sided digital display format for shared indoor spaces.
The DF2020 can support identical campaigns on both faces or separate messages for different audience flows. It is suited to shopping malls, hospitals, banks, retail stores and other public indoor environments where a dual screen advertising display can make better use of a central location.

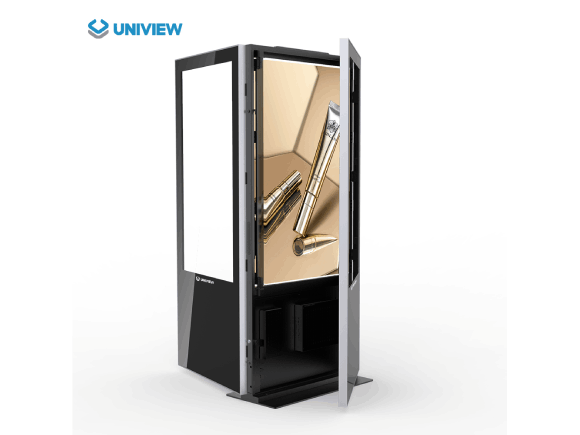

The two screens can present identical or different content, while the final control and player configuration should be confirmed for each project. The opening structure on both sides also helps technicians access internal components for routine checks and service.
Why Choose a Double-Sided Display?
Flexible Content Presentation
Use matching campaigns on both sides or plan separate messages when the project configuration supports it.
Space-Efficient Floor-Standing Design
One cabinet delivers two display faces without positioning two separate floor-standing units.
Easier Service Access
The dual-side opening cabinet design helps with component inspection and planned maintenance work.
Double-Sided vs. Single-Sided Display
| Selection Point | Single-Sided Display | Double-Sided Display |
|---|---|---|
| Viewing directions | One primary viewing direction | Two opposing viewing directions |
| Audience flow | Best where visitors approach mainly from one side | Useful where people move around both sides |
| Content flexibility | One display face for planned content | Matching or different content can be configured |
| Floor space usage | One display face per unit | Two display faces in one cabinet footprint |
| Typical placement | Wall-side areas or one-way queues | Corridors, entrances, atriums and open circulation areas |
| Maintenance considerations | Access depends on cabinet design and placement | Dual-side opening structure can support service access |
A single-sided unit is often appropriate when the audience mainly comes from one direction. Double sided digital displays are generally better suited to corridors, entrances, atriums and open circulation areas. Final selection should follow the installation position and actual traffic direction.
How to Choose the Right Configuration
Step 1
Choose the Screen Size
Available sizes are 32″, 43″, 49″, 55″, 65″ and 75″. Select according to viewing distance, available floor space and the type of content to be displayed.
Step 2
Choose the Resolution
Resolution options include 1080 × 1920 and 2160 × 3840. Confirm the final resolution availability against the selected screen size and panel configuration.
Step 3
Choose the Brightness
Options include 350, 700, 1000 and up to 2000 nits. Not every size supports every brightness level. The 2000-nit figure is the highest available option and requires project confirmation; it does not mean the unit is intended for outdoor use.
Step 4
Choose the Operating System
Choose Monitor / Driver Board for external player connections, Standalone for USB-based playback, Android for compatible embedded software requirements, or Windows when a Windows-based application environment is needed.
Memory and Storage Options
Monitor Version
- HDMI
- VGA
- DVI
- No internal storage specified
Standalone Version
- HDMI
- USB
- 16GB storage
Android Version
- HDMI
- USB
- 2GB + 16GB
- 4GB + 16GB
- 4GB + 32GB
Windows Version
- HDMI
- VGA
- USB
- 4GB + 128GB
- 32GB + 512GB
Operating system version, processor, network capability, memory and storage should be confirmed before production.
Indoor Application Scenarios
Shopping Malls
Retail Stores
Hospitals
Banks and Corporate Lobbies
Technical Specifications
| Specification | Available Information |
|---|---|
| Product type | Indoor double sided LCD digital signage display |
| Model | DF2020 |
| Panel type | LCD |
| Screen sizes | 32″ / 43″ / 49″ / 55″ / 65″ / 75″ |
| Resolution options | 1080 × 1920 / 2160 × 3840 |
| Brightness options | 350 / 700 / 1000 / up to 2000 nits |
| Contrast ratio | 1200:1 / 3000:1 |
| Operating life | 50,000–60,000 hours |
| Orientation | Portrait |
| Installation | Floor standing |
| Operating environment | Indoor |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -10°C to 60°C |
| Humidity | 10%–80% RH, non-condensing |
Touch Options
Optional capacitive touch or infrared touch is available with 10–40 touch points and a USB touch interface. Final touch configuration is subject to project confirmation.
55-Inch Reference Dimensions
Overall dimensions: 1930 × 840 × 143 mm (H × W × D). Base dimensions: 840 × 400 mm (W × D).
The dimensions above apply only to the referenced 55-inch configuration. Dimensions for other sizes should be confirmed separately.
Optional Configurations
Touch screen
Custom exterior color
Wi-Fi access point
Camera
Movable screen design
Anti-theft lock, split-screen playback, wireless casting and remote-control functions require configuration confirmation.
Customization and OEM/ODM Support
As a double sided digital display manufacturer, Uniview LCD supports configuration planning for commercial display projects. Whether you source as a double sided digital display supplier partner, integrator or project contractor, our team can review the practical fit of each requested option.
- Screen size and brightness
- Resolution and touch technology
- Operating system selection
- Memory and storage
- Exterior color and appearance details
- Camera and Wi-Fi access point
- Movable screen structure
- Branding subject to engineering review
Customization feasibility, minimum order quantity, lead time and final specifications must be confirmed during project evaluation.
From Requirement to Delivery
01
Requirement Confirmation
Review the installation setting, display goals and requested options.
02
Configuration and Quotation
Confirm suitable size, brightness, system and optional functions.
03
Drawing or Sample Approval
Review approved engineering details before production proceeds.
04
Production and Quality Inspection
Assemble, configure and inspect the selected display version.
05
Packing and Shipment
Prepare the completed units for shipment after final checks.
Manufacturing and Quality Control
Production review covers cabinet preparation, component installation, dual-screen integration, system configuration, display testing, appearance inspection and packing preparation.
- • Dual-screen display inspection on both faces
- • Testing for same-content and different-content playback arrangements
- • Interface connection and system startup checks
- • Dual-side opening maintenance structure inspection
- • Touch response checks for touch-enabled versions
- • Appearance and packaging inspection before shipment
Certification Support
Uniview LCD can provide relevant certification document support for CE, FCC, PSE, VCCI, RoHS, CB and other requirements according to the selected product configuration and target market.
Certification availability depends on the selected configuration, product version and destination market. Please confirm the applicable certificates before ordering.
Frequently Asked Questions
What is a double sided digital display?
It is a commercial LCD signage unit with screens on both sides of one floor-standing cabinet, allowing information to reach audiences moving in two directions.
Can both screens show different content?
Yes. Both faces can present identical or different content. The final player and control arrangement should be confirmed for the individual project.
Which screen sizes are available for the DF2020?
Screen size options are 32″, 43″, 49″, 55″, 65″ and 75″. Confirm the best choice based on available space, viewing conditions and content requirements.
Is 4K resolution available?
2160 × 3840 is available as a resolution option. Availability depends on the selected size and panel configuration.
How should I choose the brightness?
Consider indoor ambient light, display location and operating conditions. Brightness ranges from 350 nits to up to 2000 nits, subject to project confirmation. High brightness does not mean outdoor installation suitability.
Is touch functionality standard or optional?
Touch functionality is optional. Capacitive touch or infrared touch with 10–40 touch points and a USB interface can be considered for applicable configurations.
What is the difference between standalone, Android and Windows versions?
Standalone versions support USB-based playback. Android and Windows versions are selected when compatible embedded software environments are needed. Operating system version and hardware details require confirmation before production.
Is this display suitable for outdoor installation?
No. This double sided digital signage display is intended for indoor environments. Do not treat the highest brightness option as an outdoor protection rating.
How is the unit accessed for maintenance?
The cabinet uses a dual-side opening structure to assist technicians with routine inspection, component access and maintenance tasks.
What information is needed for a quotation?
Please share your preferred screen size, brightness, resolution, system version, touch requirement, installation setting and any requested custom exterior or hardware options.
Request a Quote for Your Double Sided Digital Display
Tell us the screen size, brightness, system version and touch requirements for your DF2020 project. Our team will review the requested configuration and discuss the available options with you.
