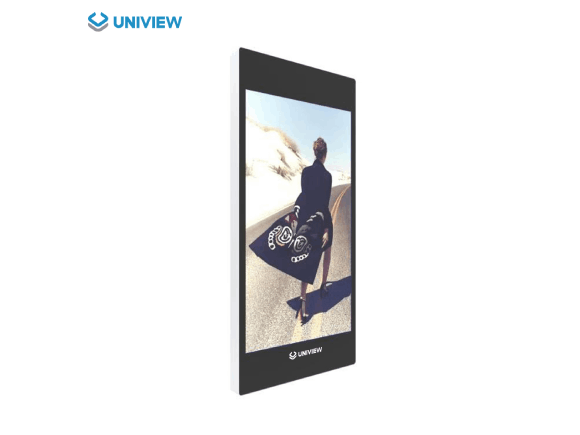

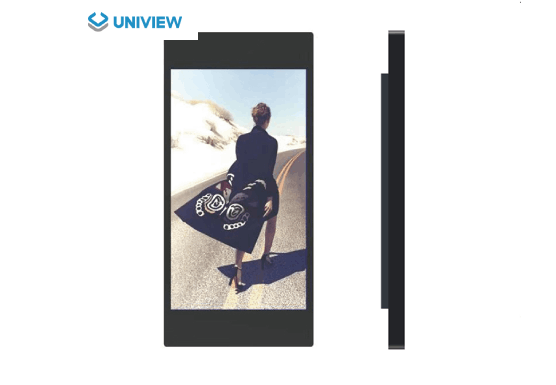

SEMI-OUTDOOR WINDOW DISPLAY-WO200P

Description

  •

    WO200P, supports 3 installations-wall mounted, ceiling hanging and cart mounted, With 2000 and 3000 nits brightness for option, WO200P LCD Ultra thin wall mounted outdoor display no doubt will satisfy your needs to a large extend. The Ultra-thin frame design only 10cm only, highlights the pic and concept noble high sense of delicacy which let a person feel it low-key and costly

  • It is a good choice for the digital wall mounted display application.
  • Uniview makes great progress for outdoor-wall mounted display technology. Every display is factory color calibrated for remarkable color reproduction, high contrast, and superb picture quality. LED backlighting is quite energy-efficient and provides a much brighter image than traditional CCFL backlights. With a resolution of FHD or UHD, the WO200P LCD wall mounted provides a super sharp image that is easy to read the text and observing the details.

Features

  • High end Shopping mall /Retail shop outdoor application on it
  • Support landscape and portrait screen mode
  • High brightness screen ranging from 2000nits – 3000nits
  • Excellent performance for heat dissipation
  • Super slim frame design

Reference Dimension

55″ outer size:W850*H1600*T100mm

S02 icon03

Anti-theft Lock

S02 icon06

Waterproof&Dustproof

S02 icon07

Direct Sunlight Readable

S02 icon08

24Hours/7Days Running

S02 icon10

Miracast

S02 icon12

Remote Monitoring

S02 icon15

Heat Dissipation

Specifications

Operating enviroment Outdoor wall mounted display Specifications
Outdoor PANEL Display 32″ 43″ 49″ 55″ 65″ 75″ 86″
Screen Size
Panel Technology IPS,M+(WRGB) IPS,M+(WRGB) IPS.M+(WRGB) IPS,M+(WRGB) IPS,M+(WRGB) IPS,M+(WRGB) IPS,M+(WRGB)
Back light type WLED WLED WLED WLED WLED WLED WLED
Asper Ratio 16:09:00 16:09 16:09 16:09 16:09 16:09 16:09
Native resdution 1920*1080 1920*1080 1920*1080 1920*1080 3840*2160 3840*2160 3840*2160
Brightness 2000~3000nits 2000~3000nits 2000~3000nits 2000~3000nits 2000~3000nits 2000~3000nits 2000~2500nits
contrast Ratio .1200:1 1200:1 1200:1 1200:1 1200:1 1200:1 1200:1
Dynamic CR CR≥10 CR≥10 CR≥10 CR≥10 CR≥10 CR≥10 CR≥10
Viewing Angle(H*V) 178*178 178*178 178*178 178*178 178*178 178*178 178*178
Response time 6ms 6ms 6ms 6ms 8ms 8ms 8ms
Surface Treatment(Haze.Quater Wave plate) (Haze 1%),Hard coating (3H) (Haze 1%),Hard coating (3H) (Haze 1%),Hard coating (3H)  (Haze 3%),Hard coating (2H)  (Haze 3%),Hard coating (2H)  (Haze 3%),Hard coating (2H)  (Haze 3%),Hard coating (2H)
Life Time(Type)  50,000 h – 60000 h  50,000 h – 60000 h 50,000 h – 60000 h 50,000 h – 60000 h 50,000 h – 60000 h 50,000 h – 60000 h 50,000 h – 60000 h
Operation Hours 24h 24h 24h 24h 24h 24h 24h
Orientation  Portrait & Landscape  Portrait & Landscape  Portrait & Landscape  Portrait & Landscape  Portrait & Landscape  Portrait & Landscape  Portrait & Landscape
Connectivity Input  HDMI, DVI, VGA,  HDMI, DVI, VGA, HDMI, DVI,VGA, HDMI, DVI, VGA, HDMI,DP,VGA,AUDIO,USB HDMI,DP,VGA,AUDIO,USB HDMI,DP,VGA,AUDIO,USB
Output  External Speaker Out(L/R)  External Speaker Out(L/R) External Speaker Out(L/R) External Speaker Out(L/R) External Speaker Out(L/R) External Speaker Out(L/R) External Speaker Out(L/R)
External Control
PHYSICAL SPECIFICATION Protection Glass  6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)  6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)  6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)  6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)  6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)  6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)  6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)
Bezel Color Black/Silver Black/Silver Black/Silver Black/Silver Black/Silver Black/Silver Black/Silver
Bezel width
Monitor Dimension(WxHxD)
Weight(head)
Packing dimensions(WxHxD)
Packing weight(G.W)
KEY FEATURE Temperature Sensor, Auto Brightness sensor
ENVIRONMENT
CONDITIONS
Operation Temperature .-20°C to 40 °C with fans;
-30°C to 50 °C with air conditioner)
.-20°C to 40 °C with fans;
-30°C to 50 °C with air conditioner)
.-20°C to 40 °C with fans;
-30°C to 50 °C with air conditioner)
.-20°C to 40 °C with fans;
-30°C to 50 °C with air conditioner)
.-20°C to 40 °C with fans;
-30°C to 50 °C with air conditioner)
.-20°C to 40 °C with fans;
-30°C to 50 °C with air conditioner)
.-20°C to 40 °C with fans;
-30°C to 50 °C with air conditioner)
Operation Humidity .-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing .-10°C-80°C .-10°C-80°C .-10°C-80°C .-10°C-80°C .-10°C-80°C
POWER Power Supply  100-240V~, 50/60Hz  100-240V~, 50/60Hz  100-240V~, 50/60Hz  100-240V~, 50/60Hz  100-240V~, 50/60Hz  100-240V~, 50/60Hz  100-240V~, 50/60Hz
Power Type Built-In Power Built-In Power Built-In Power Built-In Power Built-In Power Built-In Power Built-In Power
POWER
CONSUMPTION
Typ./Max. 2000nits 120W/180W 180W/255W 210W/290W 260W/360W 335W/520W 390W/600W 850W/1200W
2500nits 150W/200W 225W/310W 245W/340W 320W/445W 420W/580W 490W/700W 1000W/1450W
3000nits 175W/230W 260W/360W 260W/400W 370W/510W 480W/720W 570W/800W
CERTIFICATION Safety PSE PSE PSE PSE PSE PSE PSE
EMC PSE/VCCI PSE/VCCI PSE/VCCI PSE/VCCI PSE/VCCI PSE/VCCI PSE/VCCI
SOFTWARE
COMPATIBILITY
SuperSign Yes(CMS, Control) Yes(CMS, Control) Yes(CMS, Control) Yes(CMS, Control) Yes(CMS, Control) Yes(CMS, Control) Yes(CMS, Control)
ACCESSORY Basic Remote Controller, Manual(EIG, IG , OM), Regulation Book,
HDMI Cable , POWER CABLE
