Update Campaign Content More Efficiently
Digital displays allow promotional, event and brand content to be changed in line with operating plans. The publishing method depends on the selected playback system and software.
Shopping Mall Digital Signage-U2020-S

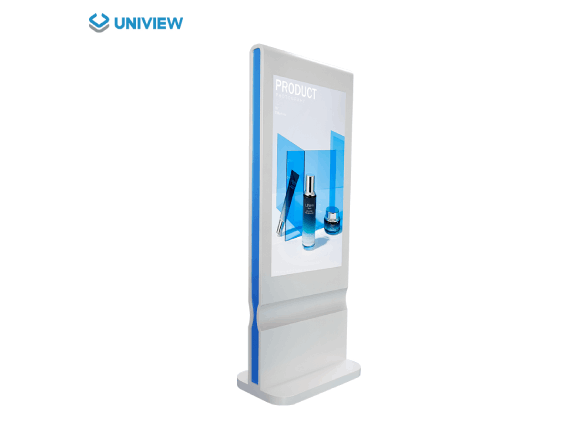

U2020-S is an indoor floor-standing LCD display terminal designed for shopping centers, retail complexes and premium commercial interiors. It provides 43-inch and 49-inch portrait options for shopping mall digital signage installations where visual quality, flexible configuration and a refined appearance matter.
Brightness, resolution and playback systems can be selected according to the project. Optional touch and peripheral integration help the display support different communication or interactive requirements without positioning the hardware as a complete mall signage network.
- ✓43″ and 49″ portrait display options
- ✓350 / 700 / 1000-nit configurations
- ✓Premium stainless-steel housing
- ✓Optional touch and system integration
A Floor-Standing Display for Shopping Mall Digital Signage
Shopping mall digital signage commonly combines different display types, playback systems and content-management approaches. U2020-S is the display hardware terminal within that broader environment, suited to entrances, atriums, corridors and areas near retail stores.
It can present brand campaigns, tenant promotions, mall events, directory content and public notices. Its floor-standing structure does not rely on wall mounting, making it practical for open commercial areas and changing retail layouts.
This is an indoor commercial LCD display and requires an AC power connection during operation.
Why Shopping Malls Use Digital Signage
Improve Visibility in High-Traffic Areas
A portrait floor-standing format is easy to position near entrances, atriums and main corridors where commercial information needs clear visibility.
Support Multiple Communication Needs
The same screen can support advertising, event information, directories and public notices when the chosen system is configured for the required content.
Maintain a Consistent Commercial Appearance
Premium housing details and configurable color options help the equipment align with a mall interior or a branded retail environment.
Built for Premium Indoor Retail Environments

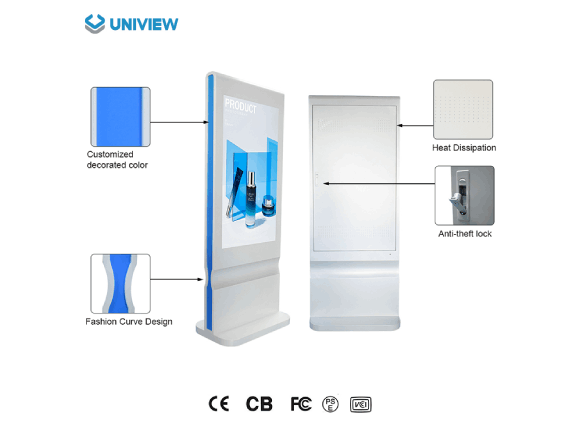

Premium Housing
Stainless-steel construction with piano-grade baking paint provides a polished appearance for modern malls and high-end retail spaces.
Portrait Visual Format
Portrait presentation works naturally for posters, product promotions, brand creative and directory-style information.
Multiple Brightness Options
350, 700 and 1000-nit configurations can be assessed against indoor ambient light conditions.
Flexible System Configuration
Driver Board, Standalone, Android and Windows options support different playback and interaction requirements.
Where to Place Digital Signage in a Shopping Mall
Mall Entrances
Present welcome content, brand identity, major campaigns and important promotional information as visitors enter.
Atriums and Main Corridors
Support tenant advertisements, seasonal campaigns and public information in open, high-visibility circulation zones.
Storefronts and Promotional Zones
Highlight new products, discounts, membership activity and retailer-led brand messages near stores.
Service Desks and Directory Points
Show floor directories, opening hours and visitor information. Interactive wayfinding requires an optional touchscreen and compatible wayfinding software supplied or integrated according to the project.
What Can the Display Show?
Tenant advertisements
Brand campaigns
Seasonal promotions
Mall events
Store directories
Opening-hour information
Public announcements
Membership promotions
Food-court promotions
Visitor guidance content
Supported file formats depend on the playback system and software configuration. Real-time updates, multi-screen synchronization, analytics and advertising billing are not default functions and should be confirmed separately when relevant to the project.
Choose the Right Display Format for Your Mall
| Display Format | Suitable Use | Planning Considerations |
|---|---|---|
| Floor-Standing Digital Signage Totem | Entrances, atriums and open corridors; portrait advertising and information. | Does not depend on wall mounting. Touch can be selected. U2020-S belongs to this type. |
| Wall-Mounted Digital Signage | Fixed viewing positions and areas where floor space is limited. | Requires a wall or mounting bracket; relocation can be more complex. |
| Video Wall or Large LED Display | Large visual statements in atriums or event areas. | Usually requires more complex structure, control and installation than a single LCD totem. |
| Interactive Wayfinding Kiosk | Customer enquiry and route-navigation tasks. | Needs touch hardware, dedicated software, maps and tenant data. U2020-S requires touch and compatible software for this use. |
How to Configure Your Shopping Mall Digital Signage
Step 1: Select the Screen Size
Standard options are 43 inch and 49 inch. Review viewing distance, corridor width, available space, content text size, traffic flow and visual proportion. Other sizes may be evaluated for customized projects.
Step 2: Select the Brightness
350 nits suits standard indoor retail spaces. 700 nits suits brighter atriums, entrances and halls. 1000 nits can be considered for bright indoor areas near glass façades.
Step 3: Select the Resolution
1080 × 1920 and 2160 × 3840 options are available. Final resolution depends on screen size, panel availability and project configuration.
Step 4: Select the Playback System
Choose Driver Board, Standalone, Android or Windows according to content playback, network planning and any required interaction.
Playback and Operating System Options
| System | Interfaces | Reference Storage |
|---|---|---|
| Driver Board | HDMI / VGA / DVI | No internal storage |
| Standalone | HDMI / USB | 16GB |
| Android | HDMI / USB | 2GB + 16GB or 4GB + 16GB |
| Windows | HDMI / VGA / USB | 4GB + 120GB SSD |
Actual interfaces, memory, storage and operating-system versions are subject to the final project configuration. A cloud CMS is not included by default. Remote management requires compatible software and a suitable network plan.
Optional Touch and Peripheral Integration
Touch Options
Capacitive touch or infrared touch can be evaluated with 10-point or 40-point touch options. Touch is not standard on every configuration.
Peripheral Options
Wi-Fi access point, wheels, camera, printer, card reader and scanner integration may be available after technical evaluation. Peripheral options do not mean default support for payment, POS, ticketing or identity verification.
Split-screen playback, wireless casting, remote-control functions and security hardware should be confirmed according to the selected system and project configuration. Interactive wayfinding requires additional compatible software and content development.
Shopping Mall Digital Signage in Real Commercial Spaces
Mall Entrance Advertising
Atrium and Corridor Promotions
Storefront Campaign Displays
Directory and Information Points
Shopping Mall Digital Signage Specifications
| Product Type | Indoor floor-standing LCD digital signage |
|---|---|
| Model | U2020-S |
| Screen Size | 43″ / 49″ |
| Other Sizes | Available for project evaluation |
| Panel Brand | LG or Samsung, subject to configuration |
| Display Orientation | Portrait |
| Resolution | 1080 × 1920 / 2160 × 3840 |
| Aspect Ratio | 16:9 |
| Brightness | 350 / 700 / 1000 nits |
| Contrast Ratio | 1400:1 |
| Response Time | 8 ms |
| Viewing Angle | 178° horizontal / 178° vertical |
| Backlight | WLED |
| Panel Life | 50,000–60,000 hours |
| Housing | Stainless-steel construction |
| Surface Treatment | Piano-grade baking paint |
| Touch Technology | Optional capacitive or infrared touch |
| Touch Points | 10-point or 40-point options |
| Touch Interface | USB |
| Power Input | AC 100–240V, 50/60Hz |
| Operating Environment | Indoor |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 60°C |
| Operating Humidity | 10%–80% RH, non-condensing |
| Base Lighting | Optional colored light |
| Housing Color | Custom color available |
The official product description presents U2020-S for around-the-clock commercial applications. Final duty-cycle requirements, panel configuration and warranty conditions should be confirmed before ordering.
Customization for Shopping Mall Display Projects
Screen size, brightness and resolution — available based on project requirements.
Housing color, logo graphics and base-light appearance — subject to technical evaluation.
Playback system, Android or Windows configuration — final configuration must be confirmed before production.
Touchscreen, memory, storage and interface requirements — subject to technical evaluation.
Camera or sensor opening, printer, scanner or card-reader integration — available after technical evaluation.
Packaging and project documentation — available based on project requirements.
Planning a Shopping Mall Digital Signage Project
Installation location and indoor lighting conditions
Viewing distance, screen size and content orientation
Brightness and playback method
Touch requirement and network availability
Software or CMS requirement
Housing color and optional peripherals
Quantity and destination market
U2020-S provides display hardware and optional system configurations. Content creation, map data, mall-management platforms, advertising schedules and multi-screen network management must be confirmed separately according to project scope.
From Mall Requirement to Delivery
1. Requirement Review
Confirm installation position, ambient light, viewing distance and intended content.
2. Configuration Confirmation
Select size, brightness, resolution, playback system, touch needs and software boundary.
3. Drawing or Sample Approval
Confirm exterior color, branding details and approved project documentation or sample.
4. Production and Quality Inspection
Complete production, assembly, functional checks and appearance inspection.
5. Packing and Delivery
Prepare protective packaging and shipment documentation for the confirmed destination.
Manufacturing and Quality Control
Uniview LCD supports structural preparation, component integration, assembly, functional testing, customization and packaging for commercial LCD digital signage. Production activities can include housing preparation, surface treatment, display-panel installation, electronic-component integration, system configuration, functional testing, appearance inspection, aging tests, protective packaging and shipment preparation.
Certification Support for International Projects
Certification documents can be prepared or matched according to the selected configuration and destination-market requirements. Available certification support may include CE, FCC, PSE, VCCI, RoHS and CB documentation. Please confirm the applicable model, configuration and certificate scope before ordering.
Shopping Mall Digital Signage FAQ
What is shopping mall digital signage?+
It is the use of digital displays and selected playback or content-management methods to communicate advertising, promotion, directory, event and public information in indoor mall environments.
What role does the U2020-S play in a mall signage system?+
U2020-S is an indoor floor-standing LCD display terminal. It is hardware within a wider project and is not, by itself, a complete signage network, CMS or advertising platform.
Where can a floor-standing display be installed in a shopping mall?+
Typical indoor locations include entrances, atriums, main corridors, storefront areas, promotional zones, service desks and directory points.
Which screen sizes are available?+
The standard U2020-S options are 43 inch and 49 inch. Other sizes may be evaluated for customized projects.
Can I choose Full HD or 4K resolution?+
1080 × 1920 and 2160 × 3840 options can be selected subject to screen size, panel availability and final project configuration.
Which brightness is suitable for a mall entrance?+
700 nits is often considered for brighter entrances and halls. Areas near strong daylight or glass façades may require 1000 nits after an indoor ambient-light assessment.
Does the display support Android or Windows?+
Android and Windows are available configuration options, alongside Driver Board and Standalone systems. Final interfaces and storage depend on the selected configuration.
Is touchscreen functionality available?+
Yes. Optional capacitive or infrared touch can be selected with 10-point or 40-point options. Touch is not included as standard on every unit.
Can it be used as an interactive mall directory?+
It can support that application when optional touch and compatible wayfinding software are supplied or integrated according to the project. Directory software is not a default feature.
Does the display include a cloud CMS?+
A cloud CMS is not a default confirmed configuration. If remote management is required, compatible software and a network solution should be selected separately.
Can the housing color and base light be customized?+
Custom housing color and optional colored base lighting may be available based on project requirements. Final details must be confirmed before production.
Can cameras, scanners or printers be integrated?+
These options may be considered after technical evaluation. Compatibility and required software should be confirmed before production.
Can the display be used outdoors?+
No. U2020-S is designed for indoor operation and uses AC 100–240V, 50/60Hz power.
What project information is required for a quotation?+
Please provide installation location, size, quantity, brightness, resolution, playback system, touch needs, software requirements, optional peripherals, housing color and destination market.
