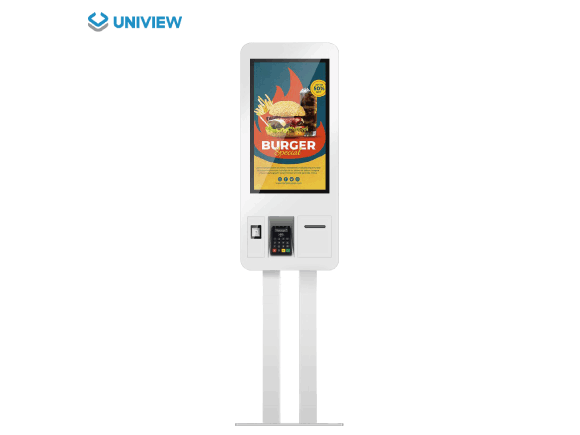

INDOOR FLOOR STAND -SELF SERVICE ORDER TERMINAL

Description

  • Our self order /payment service order digital signage displays use a completely different design process from indoor displays. Free-standing application function accepted

    customized to meet the choices of many customers.

  • Uniview is determined to provide our customers with the highest quality products. F130P Outdoor Digital Signage Display combines a variety of advanced manufacturing processes to enrich product functions, thereby improving the convenience of product use, and can bring you a different user experience.

Features

  • Application function accept customization, say what you need, we help you achieve
  • Additional monitoring devices are available
  • Customized logo options

Reference Dimension

Panel size:32″/43″49″/55″/65/75″

S02 icon03

Anti-theft Lock

S02 icon05

Touch

S02 icon09

Split Screen

S02 icon10

Miracast

S02 icon11

Remote Control

S02 icon13

Customized

Specifications

OUTDOOR FLOOR STAND KIOSK
Panel
Panel size 43″/49″/55″/65″/75″
Resolution 1080*1920/2160*3840
Aspect Ratio 16:09
Brightness(nits) 2000-3000nits
Contrast Ratio 1400:1
Gray to Gray Response Time(ms) 8
Viewing Angel 178°/178°
Backlight configuration WLED
Operating Life (hours) 50000-60000h
Media Connectivity
Operating System Interface Storage
Driver board HDMI, VGA, DVI None
Standalone HDMI, USB 16G
Android HDMI, USB 2G+16G/4G+16G
Windows HDMI, VGA, USB 4G+120G SSD
Touch
Touch Type Capacitive Touch
Number of Touch points 10/40
Interface USB
Power
Input Voltage AC110V/220V, 50/60HZ
Surge Protection Yes
Leakage Protection 30mA/0.1S
Enviroment
Operating  Enviroment Outdoor
Operating  Temperature -20°C~+40°C with fans , -30°C~+50° C with air conditioner
Storage  Temperature -20°C~+60°C
Humidity 10%-80% RH Non-condensing
Enclosure
Dust proof& Water proof IP55/IP65
Glass Type Laminated tempered and anti-reflective glass
Optional item
Touch Screen Yes
wifi access point Yes
Wheels Yes
Camera Yes
Card Reader Yes
Scanner Yes

Order Cost-Effective Digital Signage to Improve Advertising, Messaging & Communication
