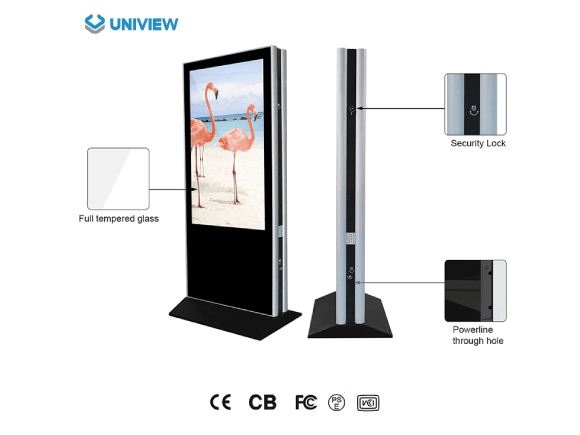

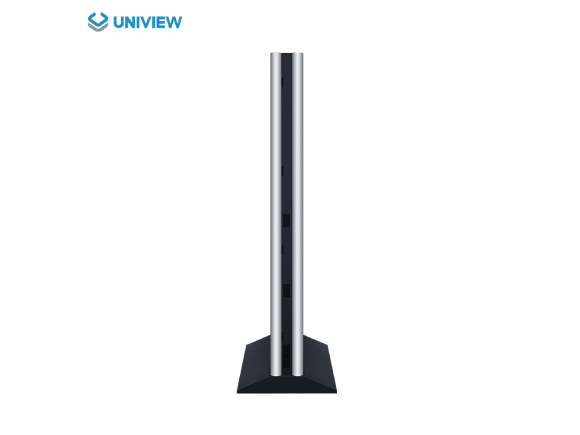

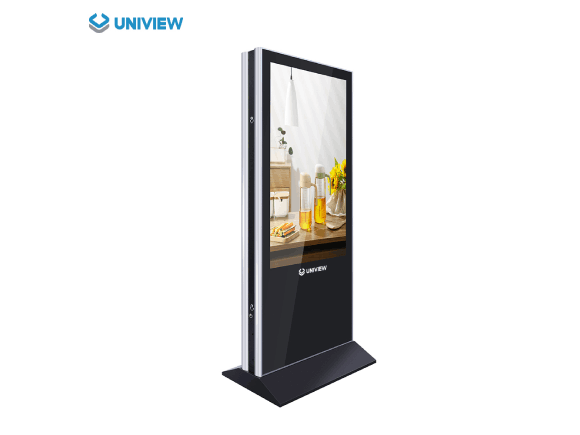

Double Sided Digital Display-DF1800
The DF1800 is an indoor floor-standing display equipped with two back-to-back portrait LCD screens. It is available in sizes from 43 to 98 inches, with FHD or 4K resolution options. Depending on the selected media player and system configuration, both screens can show the same content or play different content independently. Optional touch functionality and project-based OEM/ODM customization are also available.
What Is a Double-Sided Digital Display?
A double-sided digital display uses two screens facing opposite directions. The DF1800 Series is designed as an indoor floor-standing LCD display with two back-to-back portrait screens. This dual-screen advertising display integrates two displays into one enclosure rather than placing two separate units side by side, allowing it to reach audiences moving in two directions while using limited floor space. Depending on your selected media player and system configuration, both sides can show the same content or play completely different media. It is widely used for advertising, brand promotion, wayfinding, and public-information delivery. Please note that the DF1800 is a floor-standing display, not a suspended window display or an LED display.
Reach Audiences Moving in Both Directions
This structure is designed for corridors, entrances, open areas, and environments with two-way foot traffic, maximizing communication efficiency from a single installation point.
Two Back-to-Back LCD Screens
Capture attention from both directions in open corridors, halls, and public indoor spaces.
Same or Different Content
Run the same campaign on both sides or schedule different content according to the final system configuration and independent-control method.
One Footprint, Less Floor Space
Reduce the need for two separate units while optimizing floor-space use and power cabling.
Accessible Service Panels
Designed with accessible panels for easier access to internal components, media players, wiring, and maintenance.
Is the DF1800 the Right Double-Sided Display Format?
The commercial-display market offers several types of double-sided solutions. The DF1800 is a floor-standing indoor LCD display—not a suspended window display, an outdoor weatherproof display, an LED/dvLED product, or a desktop office monitor. Even with the 2,000-nit option, it remains an indoor product.
| Format | Installation | Typical Environment | Main Difference |
|---|---|---|---|
| DF1800 floor-standing double-sided display | Floor standing | Indoor shopping malls, hospitals, banks, and public indoor spaces | Two Back-to-Back Portrait LCD Screens |
| Suspended Double-Sided Window Display | Cable or Ceiling Mounted | Retail Storefront Windows | Inward- and outward-facing screens often use different brightness levels |
| Outdoor Double-Sided Kiosk | Fixed Outdoor Installation | Exposed Outdoor Locations | Requires dedicated weather protection and thermal management |
| Double-sided LED display | Structural mounting | Large-Format, Long-Distance Viewing | Uses LED modules and a specified pixel pitch |
| Dual office monitors | Desk or Workstation Mounted | Shared Office Workstations | Small desktop-monitor format rather than a public digital-signage kiosk |
How to Choose a Double-Sided Digital Display
Follow these steps to define the correct DF1800 configuration for your project:
Confirm that the unit will be installed indoors.
Select a screen size from 43 to 98 inches based on the available space and viewing distance.
Choose FHD or 4K according to content detail requirements.
Select 350, 700, 1,000, or 2,000 nits according to the indoor ambient-light level.
Determine whether both screens will display the same content.
Confirm whether the two screens require independent control.
Select your system: driver board, standalone, Android, or Windows.
Choose no touch, capacitive touch, or infrared touch.
Confirm whether touch is required on one side or both sides.
Define requirements for color, Wi-Fi access point, camera, and movable structure.
Confirm compatibility with your selected CMS and playback software.
Confirm the certifications required for the target market.
Not Sure Which Configuration Fits Your Project? Share the installation location, viewing distance, ambient-light conditions, content required on each side, touch requirements, software environment, order quantity, and target market.
Select the Display, System, and Interaction Level
The DF1800 Series offers multiple configuration options. Please note that not every model supports every listed specification simultaneously; the final configuration combination must be confirmed before production.
Screen Size
- • Options:43″, 49″, 55″, 65″, 75″, 86″, and 98″ series size options.
- • Selection Basis:Physical space limitations and audience viewing distance
- • Confirm:Final dimensional restrictions at the installation location.
FHD or 4K Resolution
- • Options:1920 × 1080 (FHD) or 3840 × 2160 (4K).
- • Selection Basis:4K for close-range text and wayfinding; FHD for general video advertising.
- • Confirm:Resolution capability of the media player and source content
Indoor Brightness
- • Options:350, 700, 1,000, or 2,000 nits.
- • Selection Basis:From standard indoor lighting to bright atrium environments.
- • Confirm:The 2,000-nit option is still an indoor configuration and is not suitable for outdoor exposure.
Same or Different Content
- • Options:Mirrored playback or independent content on each screen.
- • Selection Basis:Deliver more relevant content to audiences approaching from different directions.
- • Confirm:Mainboard, number of media players, and software capabilities required for independent playback.
Playback System
- • Options:Driver board, standalone, Android, or Windows.
- • Selection Basis:External signal input, USB loop playback, network applications, or complex software
- • Confirm:Operating-system version, storage configuration, and CMS compatibility; not every system natively supports independent playback on both screens
Touch and Optional Features
- • Options:Capacitive touch, infrared touch, single- or double-sided touch, custom color, Wi-Fi access point, and camera
- • Selection Basis:Interactive directories, check-in applications, and branded environments
- • Confirm:The number of supported touch points varies by configuration. A movable design requires dedicated engineering and is not simply a standard caster option.
Double-Sided Displays for Multiple Indoor Spaces
The DF1800 is designed for public indoor environments where people move in multiple directions. Interactive functions such as directory search, queue management, and check-in require compatible third-party software.
Shopping Malls
Fashion store
Recreational area
Airports and railway stations
How Content Is Connected and Played
The DF1800 can be configured with different internal boards to match your content strategy.
The media players, mainboards, software, and cables required by the selected system configuration must be confirmed before the two screens can be synchronized or controlled independently.
Driver Board Version
Suitable for connection to an external media player or another signal source.
Typical interfaces include:
- HDMI
- VGA
- DVI
* Final interfaces are subject to the confirmed production specification.
Standalone Version
Suitable for local USB content playback without a network connection.
Listed Configuration:
- 16 GB Storage
Android
Suitable for applications or network-content projects with confirmed CMS compatibility.
Listed Memory / Storage Configurations:
- 2 GB RAM + 16 GB Storage
- 4 GB RAM + 16 GB Storage
- 4 GB RAM + 32 GB Storage
* The Android version and CMS compatibility must be confirmed for each project.
Windows
Suitable for projects that require a full Windows operating environment to run complex applications.
Listed Memory / Storage Configurations:
- 4 GB RAM + 128 GB Storage
- 32 GB RAM + 512 GB Storage
* The Windows version, CPU, and software compatibility must be confirmed for each project.
DF1800 Double-Sided Digital Display Specifications
The following parameters represent selected configuration options within the DF1800 Series. The final screen size, panel, brightness, resolution, media player, interfaces, touch solution, and optional features must be confirmed in the quotation and production specification.
| Product Type | Indoor Floor-Standing Double-Sided Digital Display |
|---|---|
| Panel type | LCD, with two back-to-back screens |
| Screen Size | 43″ / 49″ / 55″ / 65″ / 75″ / 86″ / 98″ Series Options |
| Resolution | FHD (1920 × 1080) or 4K (3840 × 2160), Depending on the Configuration |
| Brightness | 350 / 700 / 1,000 / 2,000 nits for indoor use |
| Contrast ratio | Depends on the Selected Panel Specification |
| Service life | Depends on the Selected Panel Specification |
| Orientation | Portrait |
| Installation | Floor standing |
| Touch Options | No Touch / Capacitive / Infrared (Single- or Double-Sided Options) |
| Touch Points | Configuration Dependent |
| Touch Interface | USB (When a Touch Option Is Selected) |
| System Versions | Driver Board / Standalone / Android / Windows |
| Interfaces | Vary by system; examples include HDMI, VGA, DVI, USB, and RJ45 |
| Listed Memory / Storage | Standalone: 16 GB; Android: 2 GB + 16 GB, 4 GB + 16 GB, or 4 GB + 32 GB; Windows: 4 GB + 128 GB or 32 GB + 512 GB |
| Available Configurations | Custom color, Wi-Fi access point, camera, and movable structure design |
| Operating temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 60°C (Typical; Depends on the Panel) |
| Operating Humidity | 10%–80%, Non-Condensing |
Dimensional Reference
- 55-Inch Overall Dimensions: 1930 × 840 × 143 mm (H × W × D)
- Reference Base Dimensions: 840 × 400 (W × D; Unit to Be Confirmed)
- Other Enclosure Dimensions:Subject to the selected screen size and final production drawings
Designed for Indoor Commercial Environments
The DF1800 is strictly an indoor product, designed for operating temperatures from 0°C to 40°C. It does not have the IP protection required for outdoor water or dust exposure.
- It is not suitable for rain exposure, roadside installation, heavy-dust environments, or direct outdoor use.
- A 2,000-nit brightness option does not make the unit suitable for outdoor use. An indoor high-brightness version cannot replace a dedicated outdoor display.
- For projects that place the display behind an outward-facing window, the panel's heat resistance, brightness retention, and installation method must be specifically confirmed. The standard DF1800 is not certified for outward-facing window applications.
Custom DF1800 Configurations for Project Orders
As a double-sided digital display manufacturer, we provide flexible customization for project-based orders.
Confirmed DF1800 Options
- Screen Size Options
- Resolution
- Brightness Options
- Playback System Options
- Capacitive or infrared touch
- Custom Color
- Wi-Fi access point
- Camera
- Optional Movable Display Design
General Company Services
- OEM/ODM support
- Logo customization
- Packaging customization
- Sample Support
Items to Be Confirmed for Each Project
- • Panel Brand
- • Final Color and Surface Finish
- • Non-Standard Structure
- • Single- or Double-Sided Touch
- • Touch-Point Configuration
- • Dual-Screen Control Method
- • CMS and Software Compatibility
- • Camera Specification
- • Movable-Design Method
- • Minimum Order Quantity (MOQ)
- • Sample Lead Time
- • Mass-Production Lead Time
- • Warranty Terms
- • Certification Scope
- • Power Consumption
- • Final Dimensions and Weight
Advanced Production Facilities
With more than 14 years of industry experience, our manufacturing process helps ensure that each custom double-sided digital display meets the confirmed project specifications. The workflow covers precise enclosure and structural preparation, display and system integration, front- and rear-screen assembly—including touch integration when selected—functional inspection, secure packaging, and shipping support, all coordinated by a professional OEM/ODM project-management team.
Pre-Shipment Verification
Inspection items are verified against the confirmed production specification.
Certification Support for Different Markets
We can provide company certification documents such as CE, FCC, PSE, VCCI, RoHS, and CB to support project compliance requirements. Certification availability depends on the selected screen size, panel, touch solution, system configuration, and target market. Please request the documents applicable to your specific DF1800 project.
A Clear Process for Double-Sided Display Projects
Information Required Before Inquiry:
Double-Sided Digital Display FAQs
What Is a Double-Sided Digital Display?
How Is the DF1800 Different from a Single-Screen Digital Signage Kiosk?
Can the Two DF1800 Screens Show Different Content?
Can the Two Screens Be Controlled Independently?
Which Screen Sizes Are Available for the DF1800?
Should I Choose FHD or 4K?
Which Brightness Level Should I Choose?
Which Playback Systems Are Available?
Is Touch Available on One Side or Both Sides?
What Is the Difference Between Capacitive and Infrared Touch?
Is the DF1800 a Suspended Double-Sided Window Display?
Is the DF1800 Suitable for Outdoor Use?
Is the DF1800 an LED Display?
Can the Color, Logo, and System Be Customized?
Are Wi-Fi and Camera Options Available?
Tell Us About Your Display Project
From product selection and structural design to sample evaluation and mass-production support, our team provides professional recommendations based on your installation environment, brightness requirements, and customization needs.
